PC / Server Technology

Industrial computers with state-of-the-art PC technology. With the comprehensive range of the iba infrastructure products, we offer you reliable high-tech hardware. With this hardware, you can transmit signals and other measured values without any changes from the control system to the data acquisition system. There you can record the data.

Customized equipment

We offer the PCs in different versions:

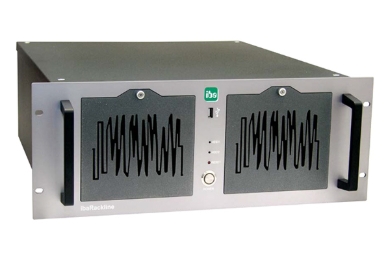

• ibaRackline for mounting on 19“ rack
• ibaDeskline as Tower PC

Both computer types have powerful processors and motherboards and run on the Microsoft Windows 10 IoT Enterprise Long-Term Servicing operating system. Moreover, we have equipped the computers with high-performance hard disks in SAS technology. Hence they are extremely robust, highly available and suited reliably for the use on a 24/7 basis. The computers offer 5 PCIe slots for iba cards and another 6 slots for iba extension modules in compact design. All connections, like USB interfaces or connections for external devices, can be reached easily. Cooling is provided by a highly efficient cooling system. The PCs are configured according to your individual needs. The iba software will be installed according to your order. The computers only leave the production after having been carefully tested.

Technical highlights ibaRackline & ibaDeskline
ü	› Xeon E3 processor, industrial mainboard with LGA1150 socket and C226 chipset as well as 16 GB DDR3-RAM › High performance hard disk in SAS technology › Slots for up to 8 hard disks › Power supply unit (single/redundant) › On board graphics board › 5 PCIe slots for measuring boards, 1 PCIe x16 slot for SAS controller		› 6 special slots for iba extension modules in compact design › Intergrated optical DVD writer › Ports for external devices (keyboard, mouse, network and others) › USB interface for the dongle on the frontside (concealed installation) › High efficiency cooling system › Monitoring of temperature and voltage supply (optional) with LED status display and alarm outputs

*The values shown here for the occupied storage capacity are determined synthetically. For the estimation, test signals were used which can only be compressed insignificantly with the compression algorithms in the ibaHD-Server. In real operation, the compression algorithms are very effective and far less storage capacity is required for analog or digital signals.
