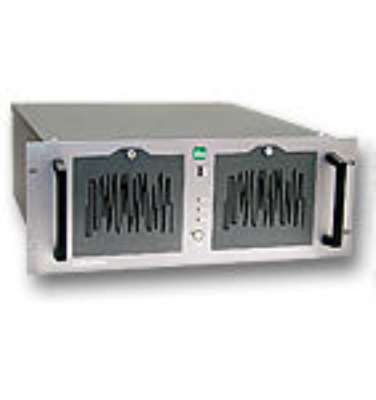

ibaRackline-PC HD, XEON E, Win10, 5x8TB HDD

embedded system - Windows 10 IoT Enterprise x64 LTSC 2021/v21H2 - Applications:

• Longterm data recording (HD data)

Technical Data:

• Manufacturer: iba AG
• 19" rack mount case
• RAID5 system with SAS HDD technology
• Redundand Power Supply 2x500W with changeable frame
• Wide range input: 100V AC - 240V AC
• CPU Intel XEON E 2176G, 3.6GHz
• Industrial Motherboard C246 Chipset and LGA1151 Socket
• On board Intel UHD-Graphic
• Max. number of simultaneously useable monitors: 3
• On board Gigabit Ethernet 2x 10 / 100 / 1000 Mbps
• On board 7.1 Kanal HD Audio
• 6 x PCI Express Slots:
  - 1 x PCI-e x16 with SAS-RAID-Controller
  - 1 x PCI-e x16 slot for 1 x PCI-e x8
  - 1 x PCI-e x4
  - 3 x PCI-e x1
• 1x PCI empty
• 32GB DDR4-RAM
• 1x HD frame 5x3,5", SAS HDD
• 5x 8TB SAS HDD
• 1x M.2 (2242/2260/2280) M-Key,
  used for 1x 512GB NVMe SSD intermediate storage
• 1x M.2 (2230) A-Key, supports WiFi module
• 8x USB 3.0 (housing backside)
• 1x USB 2.0 (housing inside / dongle)
• 2x USB 2.0 (housing front)
• 1x VGA, 1x HDMI, 1x DP
• USB keyboard, USB optical mouse
• Operating System: Windows 10 IoT Enterprise x64 LTSC 2021/v21H2
• Dimension: (HxWxD) 180mm x 430mm x 500mm
  - (Total rack depth with holder: 500mm + 40mm)
  - (Total width: front panel 430mm + 55mm)

Remarks:

• This is a class A product. In a domestic environment this product may cause radio interferences in which case the user may be required to take adequate measures.
• Enhancement packages on extra costs:
  - Upgrade storage size to 8TB per HDD
  - Upgrade storage size to 12TB per HDD
  - Alternative installation with server operating system
• Monitor must be ordered separately!
• iba Plug&Play service (HW and Software purchased with PC installed and tested)
