ibaQDR

Length-based Quality Data in any resolution

Continuous processing lines need length-based quality data for product qualification. The quality data recording system ibaQDR acquires data time-based at different measuring locations and assigns the measurement values precisely to the length position of the product.

Recording system for quality data, based on ibaPDA architecture
Technological process description of strip processing lines
Length normalization to the final product (exit coil) and synchronization of all measured data
Consideration of strip elongation in the process and all cuts
Standard length resolution: 1 m (fully adjustable incl. unit)
Scalable number of measuring locations and signals
Integration of ibaCapture data
Additional time-based recording as an option
Data storage in iba *.dat format related to the exit coil and additional to the entry coil

ibaQDR EUP

Sort by

Display per page

ibaQDR-256-6

35.702560

Quality Data Recording with 256 signals,
6 recorder for QDR application (HarmonizedCode:85234910, ECCN:N, LKZ:DE, AG:N)

ibaQDR-1024-32

35.710240

Quality Data Recording with 1024 signals,
32 recorder for QDR application (HarmonizedCode:85234910, ECCN:N, LKZ:DE, AG:N)

ibaQDR-2048-48

35.720480

Quality Data Recording with 2048 signals,
48 recorder for QDR application (HarmonizedCode:85234910, ECCN:N, LKZ:DE, AG:N)

ibaQDR-unlimited-64

35.799990

Quality Data Recording with unlimited signals, 64 recorder for QDR application (HarmonizedCode:85234910, ECCN:N, LKZ:DE, AG:N)

ibaQDR-unlimited-96

35.799992

Quality Data Recording with unlimited signals, 96 recorder for QDR application (HarmonizedCode:85234910, ECCN:N, LKZ:DE, AG:N)

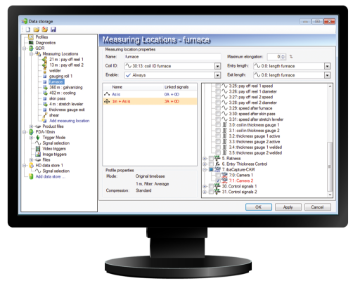

ibaQDR-Measuring-Location

35.700001

Quality Data Recording:
Measuring Points/Machines; Extension licence (HarmonizedCode:85234910, ECCN:N, LKZ:DE, AG:N)
