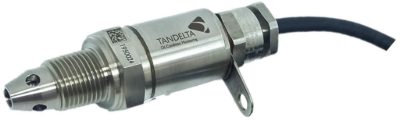

OQSx-G2-HAZ Oil Quality Sensor (7/8” UNF)

Zone 2 certified to ATEX, IECEx, UKEX & Class 1 Division 2 US/C allowing real-time oil condition analysis for hazardous area applications.

Manufacturer: Tan Delta Systems

SKU: OQSx-G2-HAZ-UN1

Product Files

Downloads

INCLUDED

1 x OQSx-G2 HAZ Sensor
1 x OQSx-G2 HAZ Sensor Quick Start Guide
1 x USB Stick

NOTE

Cables are not supplied with this product. These are supplied separately – see cable section on our web site. For configuration you will require 1 x Cable-X.

Products specifications

Attribute name	Attribute value
Product Information
Name	Ex Gen II Oil Quality Sensor
Product Number	OQSx-G2-HAZ-UN1
Material	Stainless Steel AISI304
Dimensions	118mm x 46mm (L x W)
Weight	160g
Connection	32mm AF Hex Collar
Torque	25N m
Available Threads
Thread - Seal	7/8” UNF - ‘O’ Ring
Electrical
Supply	+10-28.8 V DC
Consumption	0.4w Average
Data Output / Input
Digital Output	RS485, CANBus
Protocols Supported	Modbus, CANOpen and J1939
Oil Quality Detection Parameters
Output	Tan Delta Number (TDN) Oil Temperature (°C or °F)
Accuracy	0.01%
Sensitivity/Accuracy	01%, +
Elements	All wear and contamination
Environmental
Calibrated Temperature	-20°C to +120°C
Operating Temperature	-40°C to +120°C
Fluid Temperature	-40°C to +120 °C
Fluid Pressure	up to 70 bar (1015 psi)
Storage Temperature	-55°C to +150°C
Standards & Certification
Water & Dust	IP68
Shock & Vibration	BS EN 60068-2-30 (Test Db - Cyc.Hum.), BS EN 60068-2-6 (Test Fc - Sine Vib.), BS EN 60068-2-27 (Test Ea - Mech. Shock)
EMC	EN 61000-6-4:2007 (Generic Emissions Standard for Industrial Environments), EN 61000-6-2:2005 (Generic Immunity Standard for Industrial Environments)
Conformity	CE Marked RoHS Compliant
